HDPE PIPES

HDPE PIPES & COILS



HDPE pipes are manufactured from High Density Polyethylene polymers i.e. PE 63, PE 80 and PE 100.

HDPE Water Pipes are available as per IS 4984:2016, ISO 4427, etc.

HDPE Sewerage Pipes are available as per IS 14333, etc.

HDPE Gas pipes are available as per IS 14885, ISO 4437, etc.



Size: 20 mm to 1000mm Outer Diameter



Applications: Water supply systems, Air conditioning ducts, Acid & alkali transport systems, Drainage systems, Waste & water treatment plants, Hydro transport systems, etc.



PLB HDPE DUCTS



Permanently lubricated ducts are manufactured by co extrusion technique & the base raw material used is High Density Polyethylene. PLB HDPE Ducts are available in sizes of 32/26 mm, 40/33 mm, 50/42 mm, 63/50 mm & 110/80 mm conforming to TEC specification.



Applications: Telecommunication, Railway Information Network, Computer Networking, Cable service providers, etc.

FLANGED HDPE PIPE



Flanged HDPE Pipes are available with HDPE Flange, MS Flange and Cast Iron Flange. Flanges are normally used as demountable joints for low pressure installations (industrial plant, pump connection, tanks and swimming pools).



Connection Properties: (1) Rigid Mechanical Joint (2) Tension Resistant (3) Demountable



Double flanged HDPE pipes are preferred in applications where



1. The pipe has to be used temporarily and then has to be disconnected and used somewhere else.

2. The pipe is to be joined with Iron or steel pipe lines, Pumps, tanks, etc.

3. The Pipe is to be joined with Valves and fittings.

PE PIPE FOR GAS APPLICATION (MDPE PIPE)



PE piping systems are the most preferred means of transportation and distribution of Natural gas worldwide. The raw material used is Medium Density Polyethylene (MDPE).



Size: 20 mm to 315 mm Outer Diameter.

SPRINKLER PIPE

Worldwide HDPE sprinkler system is found to be the best method to get maximum yield at low cost. These pipes are available in pressure ratings from class 1 to 4 PN 2.5, PN 3.2, PN 4.0 & PN 6.0.



Size: 63mm to 200mm Outer Diameter.

HDPE Water Pipes

Size: 20 mm to 1000 mm Outer Diameter

Grade: PE 63, PE 80 and PE 100

Pressure rating: PN 2 To PN 16

Colour: Black with Blue Strip

Application: Distribution of Water Supply



HDPE Water Pipes are manufactured from Polyethylene resin Grade PE 63, PE 80 and PE 100. HDPE pipes are available in sizes from DN20 to DN1000, in pressure ratings from PN 2 to PN 16.

HDPE Water Pipes are manufactured as per IS 4984:2016 (Supersedes IS 4984:1995), ISO 4427, etc. and conform to highest quality standards.



Traceable HDPE Water Pipes with Copper Wire co-extruded are also available.



For Wall thickness chart/dimensions of HDPE Water Pipes as per IS 4984:2016, Click Here.



For Information regarding Storing, Laying and Jointing of HDPE Pipes, Click Here.



For Price List of HDPE Water Pipes conforming to IS 4984:2016, Click Here.

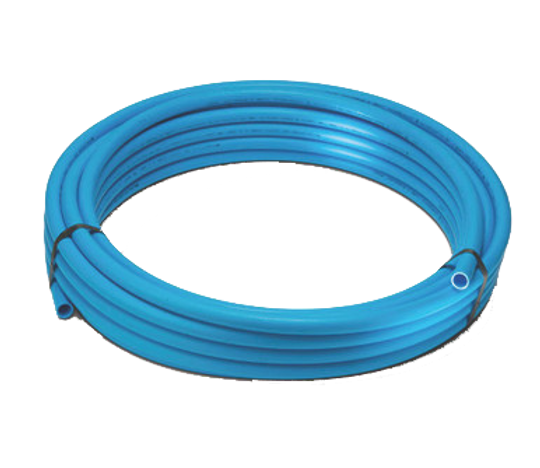

HDPE Water Pipes are available in coils as well. HDPE Coil Pipes are available in sizes upto DN 110. These HDPE Coil Pipes can be provided in lengths upto 1000 meters per coil.

Flanged HDPE Water Pipes are available with HDPE Flange, MS Flange and Cast Iron Flange. Flanges are normally used as demountable joints for low pressure installations (industrial plant, pump connection, tanks and swimming pools).



Connection Properties: (1) Rigid Mechanical Joint (2) Tension Resistant (3) Demountable



Double flanged HDPE Water pipes are preferred in applications where



1. The pipe has to be used temporarily and then has to be disconnected and used somewhere else.

2. The pipe is to be joined with Iron or steel pipe lines, Pumps, tanks, etc.

3. The Pipe is to be joined with Valves and fittings.

HDPE Sewerage Pipes

Size: 20 mm to 1000 mm Outer Diameter

Grade: PE 63, PE 80 and PE 100

Pressure rating: PN 2.5 To PN 16

Colour: Black

Application: Sewerage Distribution



HDPE Sewerage Pipes are manufactured from Polyethylene resin Grade PE 63, PE 80 and PE 100. HDPE pipes are available in sizes from DN20 to DN1000, in pressure ratings from PN 2.5 to PN 16.

HDPE Sewerage Pipes are manufactured as per IS 14333, ISO 4427, etc. and conform to highest quality standards.



Traceable HDPE Sewerage Pipes with Copper Wire co-extruded are also available.



For Wall thickness / dimensions of HDPE sewerage Pipes as per IS 14333, Click Here.



For Technical Information regarding Jointing of HDPE Pipes, Click Here.

HDPE Sewage Pipes are available in coils as well. HDPE Coil Pipes are available in sizes upto DN 110. These HDPE Coil Pipes can be provided in lengths upto 1000 meters per coil.

Permanently Lubricated PLB HDPE Duct Pipes

Size: 32/26 mm, 40/33 mm, 50/42 mm, 63/50 mm and 110/80 mm

Colour: Blue, Green, Red, Brown, etc.

Application: Telecom, Electrical Cable Laying, Optical Fibre Cable laying, etc.



PLB HDPE Ducts are manufactured from Polyethylene resin Grade PE 63. PLB HDPE ducts are available in sizes from 32/26 mm to 110/80 mm.

These Permanently Lubricated PLB HDPE Ducts are manufactured as per TEC specifications and conform to highest quality standards.

PLB HDPE Ducts have an internal silicon coating which makes it convenient to insert cables in it.

PLB HDPE Ducts can be supplied with preinstalled nylon cable for convenient laying at site.
